Product Overview

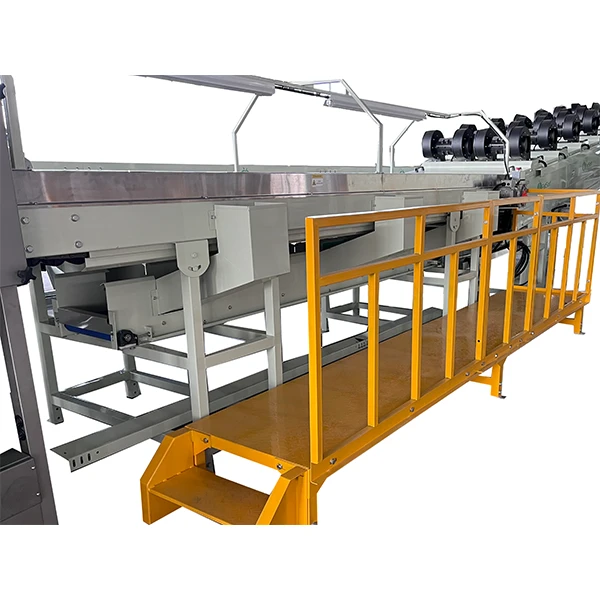

The Heavy-Duty Industrial Inspection Table is a conveyor-integrated manual quality control (QC) workstation engineered for continuous inspection, defect removal, and product sorting in industrial processing environments.
Technical Specifications
|
Item |
Specification |
|
Inner Width |
600 mm – 1200 mm |
|
Length |
4 meters (customizable) |
|
Power |
0.55 kW |
|
Conveyor Type |
Roller / Belt optional |
|
Speed Control |
VFD (Frequency Inverter) |
|
Structure Material |
SUS304 stainless steel (optional SUS316L) |
|
Lighting System |
High-lux LED (optional) |
|
Configuration |
Fully engineered to order |
Key Features
· SUS304 / industrial-grade stainless steel structure for hygienic environments
· Frequency converter (VFD) speed control for synchronized production flow
· Side discharge outlets for defective product removal
· Under-conveyor waste collection system for centralized disposal
· Top-mounted LED inspection lighting for improved defect visibility
Inspection Workflow Integration
Workflow sequence:
Receiving → Conveyor Transport → Visual Inspection → Manual Defect Removal → Waste Discharge → Collection System → Next Processing Stage
Integration characteristics:
· Can be used as inline or standalone QC workstation
· Supports multi-operator inspection on both sides
· Synchronizes with upstream and downstream conveyor systems
Industry Applications
Fruit and vegetable packing houses
Post-harvest agricultural processing facilities
Food production and packaging lines
Export-grade sorting and grading operations
Industrial quality control stations for packaged goods
Customization Options
· Conveyor type selection (roller / belt / hybrid)
· Line width and length customization
· Multi-station inspection layout design
· LED lighting intensity and configuration
· Waste discharge engineering design
· Integration with upstream/downstream automation systems
· Operator ergonomics and height adjustment modules
Compliance &Safety
Material & hygiene compliance:
· Food-contact zones designed for HACCP-oriented environments
· Stainless steel surfaces suitable for sanitary washdown processes
· Optional FDA-compliant food-grade conveyor belts (PU/PVC)
Safety systems:
· Emergency Stop (E-Stop) installed on both operator sides
· Electrical safety design compliant with industrial control standards
· Operator-safe mechanical layout for continuous operation
Company Strength and Advantages
· Installed in over 70 countries across Europe, Americas, Middle East, Africa, and Asia
· More than 1000 post-harvest processing and sorting line installations worldwide
· In-house manufacturing facility with full production control (cutting, welding, assembly, testing)
· 72-hour continuous full-load operation testing before shipment
· 3D layout design and ROI-based engineering support for full processing line planning
· Modular system design supporting integration with washing, grading, drying, and packaging equipment
· Suitable for 30+ fruit and vegetable categories including citrus, apples, potatoes, tomatoes, and berries
· 24-hour global after-sales technical response and spare parts support system
